01/12/2010
We are pleased to offer, subject unsold:
Up to 1200 x Brand New 12.7mm x 108 NSV Machine Guns - CIS Production
1000 sets NSV HMG's 12.7mm and approx 200sets NSVT'12.7MM (.50) HEAVY MACHINE
GUNS NSW UTIOS
Calibre: 12,7mm x 108 mm
Weight: 25 kg gun body, 41 kg on tripod 6T7 with 50 rounds of ammo
Length: 1560 mm (1900 mm on 6T7 tripod)
Length of barrel: 1346 mm
Feeding: Belt 50 rounds
Rate of fire: 700-800 rounds/min
The NSV heavy machine gun is a gas operated, air cooled, belt fed, automatic
only, weapon which fires from an open bolt.
The gas system consists of a gas chamber, located below the barrel, with a gas
regulator and a long-stroke gas piston attached to the bolt carrier. The barrel
can be quickly replaced in the field during sustained fire. The receiver is of
generally rectangular shape, and is assembled from heavy gauge steel stampings
and machined inserts with many rivets. Bolt locking is achieved by lateral
displacement of the entire bolt to the left side, until its locking lugs are
engaged with locking recesses cut in the insert attached to the receiver wall.
The bolt is linked to the bolt carrier with swinging links which control the
longtitudal and lateral movement of the bolt and, once the bolt is in battery
and fully locked, strikes the firing pin to discharge the gun.
The bolt carrier has several anti-friction rollers which ride on the tracks cut
in the receiver. The rear of the receiver houses a spring buffer for the bolt
group.
The NSV uses non-disintegrating steel belts with open links; feed is of the
singlestage type. Belts are assembled from 10-round pieces, using a cartridge as
an interlink. The standard belt feed unit feeds from the right side, but any NSV
gun can be set up for alternative left-side feed. The belt indexing mechanism is
built into the feed cover, which swings up and forward for loading and
unloading. Spent cartridges are ejected forward through a short tube, located to
the right of the barrel.
The firing mechanism of the NSV consists of a trigger lever with the necessary
linkage to the sear, and a mechanical safety. Firing controls must be built into
the mount, in the form of a pistol grip on the cradle of the infantry tripod, or
a firing solenoid in the cradle of the tank mount.
The standard mounting is either an infantry tripod, adjustable for height and
intendedfor ground fire only, or a low-profile AA mount with mechanical traverse
and elevation mechanisms and special sighting equipment. The infantry tripod can
be folded down and carried by the soldier as a backpack using special slings.
This tripod also houses a foldable shoulder rest (with a spring recoil buffer),
a pistol grip with trigger, and a gun charging mechanism. This consists of a
steel cable with a T-grip, wound on a spring-loaded drum, with a gear and
toothed rack that connects to the bolt carrier once the gun is properly
installed on its cradle in the tripod.
In infantry configuration, two soldiers can move the NSV across the battlefield;
the same two soldiers can carry the NSV for longer ranges if the gun is
dismounted from the tripod. One soldier then carries the tripod as a backpack,
while the other carries the gun body.
Each man also carries one ammunition can with a belt.
Standard sighting equipment for infantry NSV guns is the SPP selectable power
telescopic sight (3X or 6X), with an illuminated range-finding reticle. Each gun
is also fitted with back-up iron sights.
Note:
1. A machine gun NSVP-12,7 is supplied without an optical sight and a spare
barrel.
2. Supply of articles that are in the set of NSVP-12,7 is made in the quantity
and package according to the above Sheet of the set composition of the supply.
3. A machine gun NSVP-12,7 is registered on a mechanical sight by a supplier.
4. Operational documentation is supplied in Russian.
5. UPM-200 means NSVP-12,7 in a full set.Packing Specifications :
Box.1 " Product NSV-12,7 with 1 barrel " 1290х340х270mm weight of 52 kg Volume
0.1184m3
Box.2 " Product UPM-170 (2 pieces TRIPOD) " 1055х645х500mm weight of 79 kg
volume 0.3402m3
Box.3 " Magazine BOXES 56JL-542M (10 units) " 1050х700х310mm weight of 59 kg
volume 0.2279m3
Box.4 " Magazine BELTS (50rd) # 6L19 (140 units) " 890х380х300mm weight of 38 kg
volume 0.1015m3
19/11/2010
We are pleased to offer, subject unsold or market withdrawal:
12.7mm x 108 B-32 & BZT ammunition from Arsenal Stock
Quantity: up to 2 million each12.7 X 108MM AP(B-32) AND AP-T (BZT) FROM ARSENAL
STOCK
12.7mm CARTRIDGE WITH B-32 ARMOR-PIERCING INCENDIARY BULLET (DESIGNATION
57-BZ-542)
This cartridge is designed to engage lightly armored ground targets (armored
personnel carriers), weapon emplacements and targets behind light barriers at
ranges of up to 1,000 m, concentrated infantry and motor transport at ranges of
up to 1,500 m and low flying air targets at altitudes of up to 1,500 m. It
ignites the B-70 gasoline. It is fired from NSV, NSVT and DShKM machine guns, as
well as the OSV-96 sniper rifle. The bullet point is painted black and red.
Caliber, mm 12.7 x 108
Weight, g:
Cartridge 133.5
Bullet 48.2
Cartridge length, mm 147
Muzzle velocity, m/s 818
Max mean powder gas pressure, MPa 304
Fire consistency
At 300m range (R50), cm, max 19
Penetration range for 20mm armor, m up to 100
Case brass
12.7mm CARTRIDGE WITH BZT-44 ARMOR-PIERCING INCENDIARY TRACER BULLET
(DESIGNATION 57-BZT-542) AND WITH BZT-44M MODERNIZED ARMORPIERCING INCENDIARY
TRACER BULLET (DESIGNATION 57-BZT-542M*)
This cartridge is designed to designate targets, adjust fire and ignite targets
containing combustible materials. It ignites the B-70 gasoline. It is fired from
NSV, NSVT, DShKM and A-12.7 large caliber machine guns. The bullet point is
painted violet and red.
Caliber, mm 12.7 x 108
Weight, g:
Cartridge 128
Bullet 44
Cartridge length, mm 147
Muzzle velocity, m/s 818
Max mean powder gas pressure, MPa 304
Fire consistency
At 300m range (R50), cm, max 19
Penetration range for 15-mm armor, m up to 100
Min tracer burning time, s 3
Trace initiation from muzzle face, m 50 - 120*
Case brass
Russian made 1978 still in sealed cases - Exw CIS mil surplus inventories
Specification and photos are not contractual and are subject to verification
upon inspection
16/11/2010
We do supply All parts for US military vehicles- specifically M35A2 – 2 ½ ton
trucks and M800/M54 series 5 ton trucks
Custom Painted M35A2,
THIS IS A SAMPLE TRUCK,
We can paint to your specifications, let us know your needs
M816 CUMMINS POWERED HYDRAULIC WRECKER/CRANE, REBUILT AND CUSTOM
PAINTED ---THIS IS A SAMPLE TRUCK----
We can build and paint to your specifications, let us know your need.
M813 CUMMINS POWERED CARGO TRUCK, REBUILT AND CUSTOM PAINTED ---THIS IS A
SAMPLE TRUCK----
We can build and paint to your specifications, let us know your needs
08/11/2010
We are pleased to offer, subject unsold:
8 x SA330 Puma Helicopters + 18 engines
Can be sold as is or fully reconditioned, we must know destination port and
bxxx8 X MILITARY SA330 PUMA
04/10/2010
Very nice astazou SA318C turbine 5 seats helicopters ex military, in very good
conditions, good remaining times.
1963
150.000 EUR
30/09/2010
IEDS-2220 EXPLOSIVE & BOMB DETECTION UNIT
Specification and photos are not contractual and are subject to verification
upon inspection

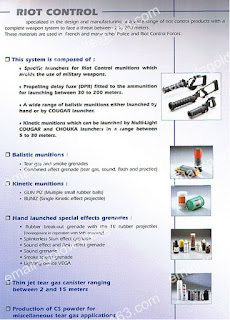

NON LETHAL RIOT CONTROL EQUIPMENT
29/09/2010
SKS and AK 47 Rifle Sight Adjustment tool for Windage & Elevation
QTY 700.....10 boxes, packed 70 per box
New, wrapped and greased for storage & shipment
Retail Price $ 34.95 each
Asian Dragon's Price $ 9.95 each
Fob: Florida USA
24/09/2010
We are pleased to offer, from new manufacture:
48MM SMOKE HAND GRENADE
The Anti-Riot grenade provides a continuous discharge of color smoke for
training, screening and tactical purposes
DESIGN FEATURES
Diameter: 48mm
Length: 110mm
Charge weight: 65gr.
Total weight: 230gr.
Body material: Plastic
PERFORMANCE
Delay time: 2 - 3sec.
Discharge time: 40-50sec.
Range: 80 - 100m.
Net explosive weight: 1.5gr.
Shell life: 5 years
Fuze type: M201A1
UN Number: UN 0301
PACKING
(40 pieces per carton)
Carton weight : 11 kg
Carton dimension: 40 x 30 x 15 cm
Maritime - Ammunition Smoke – class 1,4G – UN 0303
Specification and photos are not contractual and are subject to verification
upon inspection
Color Smoke Grenades
20/09/2010
We are pleased to offer, from new manufacture:

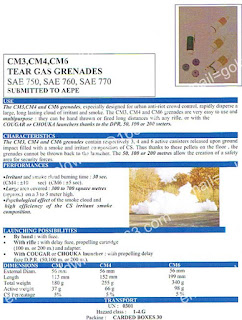

Riot Control CS Tear Gas Grenade Range

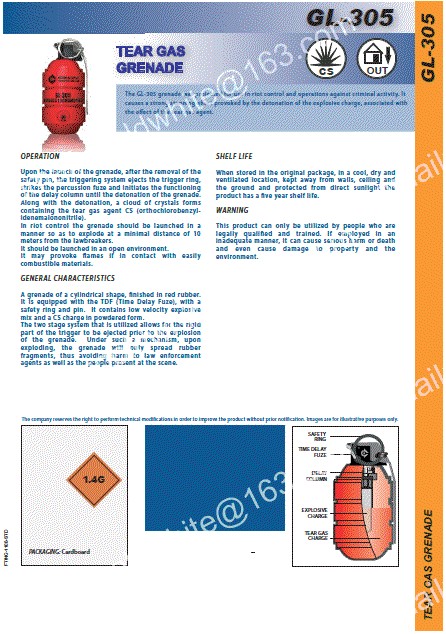

TEAR GAS GRENADE RANGE
Specification and photos are not contractual and are subject to verification
upon inspection
09/09/2010
We have the followings offered for sale with optional full support and training
from us :
02 x MI 24R TTSN 500HR due for OVH but available with I.R.A.N for On
Condition at $ 1.950.000 each or $ 5.120.000 each after full overhaul 750 hr / 6
years
02 x MI 24V TTSN 1700HR due for OVH but available with I.R.A.N for On
Condition at $ 2.195.000, each or $ 5.500.000, each after full overhaul 750 hr /
6 years
01 x MI 24UD TTSN 1700HR due for OVH but available with I.R.A.N for On Condition
at $ 2.110.000, each or $ 5.280.000, each after full overhaul 750 hr / 6 years
02 x MI 24V TTSN 450HR TSO 0HR (2009) $ 4.620.000,each ready for immediate
delivery
02 X MI 24RK TTSN 900HR NVG compatible – TSO 0HR (1994) calendar expired
available with I.R.A.N at $1.830.000, each or $5.600.000 after full overhaul 750
hr / 6 years
IMPORTANT REMARK : none of the above Mil helicopters are under the control of
ROE- Rosoboronexport (Russia).
08/09/2010
We are pleased to offer, from new manufacture:Sniper rifle 20mm
Anti Material Sniper Rifle, cal.20x110mm
Design features:
Ø Single shot bolt action weapon
Ø Manually operated bolt handle on the left of the receiver
Ø Recoil forces reduction achieved by a recoil compensation tube
Ø Recoil forces reduction achieved by a high efficiency multi-baffler
Ø Muzzle brake grate power at cartridge
Ø One-man operating and transporting
Anti Material Sniper Rifle Type, cal.20x110mm
TECHNICAL DETAILS
Calibre: 20x110mm
Overall length: 1330mm
Barrel length: 920mm
Muzzle velocity: 850 m/s
Scope: 6x42
Operation: Manuallyoperated bolt
Maximum operational range: 2000m
Mass of the Rifle without bipod and scope: 15,1 kg
Mass of bipod: 1,3 kg
Mass of scope: 0,6 kg
Mass of Rifle with bipod and scope: 17 kg
Mass of backpack: 3,2 kg
Anti material Rifle Type cal.20x110mm, is designed to be used against hostile
vehicles, communication centres, command post shelters, logistic centres and
similar targets. The rifle can be also used by explosive ordnance disposal
teams.
Aiming with the Anti Material Rifle is stabilized by height adjustable bipod.
The bipod height can be adjusted from 215 to 295mm.
The recoil produced by 20mm cartridge while firing Anti Material Rifle is
absorbed in two ways: a) by recoils compensation tube mounted above the barrel
and b) by high efficiency muzzle brake.
The bolt has three sets of locking lugs opened by turning the bolt handle 60°.
Once the bolt is moved forward and locked, the AM Rifle can be fired.
About half way down the barrel there is a block with an upwards facing gas port.
As the projectile passes this point, some of the propellant gases are topped off
and directed along the recoil compensation tube to be vented behind and above
the bolt area.
Defense items are subject to final destination approval and granting of an
Export license issued by exporting country's authorities
02/09/2010
Cotton sportswear from VitaGearPlease see attached dri-fit and cotton sportswear
from VitaGear. Quality
Comparable to Adidas and Nike as the company usually supplies top quality
Clothing to the army.
Take All 17,112 pieces at US$3.45 a piece. Take All preferred.
VitaGear - TeeShirtRange FinalNos.xls
Size : 0.265 Kb
Type : xls
Gas masks
EVERY HOME SHOULD HAVE ONE FOR EVERY FAMILY MEMBER ...you just never know
At this price every home can
Gas masks
Brand new-beautiful condition-ind Boxed-565,560 per pallet-16 per
case-------89000 units-fob:
LeesburgFl---120000 units RaleighNC------$1.95 each by the pallet---buy All
20/08/2010
CAMOUFLAGE MENS PANTS,
1st class stocklot
FIRST COME – FIRST SERVE
QUANTITY : 45.000 pcs
MINIMUM ORDER : 10.000 pcs
LOCATION / WAREHOUSE : GERMANY
DELIVERY TIME : 10 Days of receipt of payment
PRICE BY TAKE ALL UNIT : 5.00 €
PRICE RETAIL until : 49,90 €
Model: Men's pants, camouflage patterns, 6 bags
Material: 65% polyester, 35% cotton
Colors, 4 colors sorted according to picture
Sizes: S - XXXL
Range: 40 pieces per box, assorted colors and sizes
Quantity .45.000 pcs
18/08/2010
CAMOUFLAGE CAPS
CASE LOTS ALL NEW
1,200 DOZEN, 48 PER CASE
FOB NJ USA
$7.80/DZ
05/08/2010
7.62 x 39mm ball ammuntion, ARSENAL STOCK
1) Offer 50 million rds. 7,62x39 model 43 from stock for immediate delivery.
2) Ammunition is manufactured between 1980-1988, test reports available
3) Stock and load at Pardubice Airport. We have good long-term experience with
deliveries of military weapons and ammunition from this airport.
4) Can deliver ammunition on FCA Pardubice Airport basis.
5) Ammunition is hermetically packed in wooden cases, palletized. 1 aircraft
IL-76 can take ca. 2.000.000 rds. (ca. 70 pallets, ca. 50 tons), airport loading
capacity max. 2 aircrafts per day.
6) Ammunition is packed in wooden cases á 1120 or 1200 rds., mostly 24 cases on
pallet. Pallet dimensions 130x82x92 or 111x66x94 cm. Pallet weight 660 – 690
kgs.
7) Ammunition is available for immediate delivery, ca.10 days after receipt of
Czech Export Licence.
8) Needed documents: contract, EUC (issued by final end-user and accepted by
Czech authorities) The EUC needs to be from the final customer.
9) Czech Export License should be issued within 60 days after application (if no
additional requirements from Czech Authorities)
10) Ammunition: UN No. 0012, Class 1.4S
7.62 x 39 Ammo has lacquered steel cases for smooth feeding.
23-gr. Soft point bullet
Berdan-primed, non-corrosive
Non-reloadable
Muzzle Velocity: 2,445 F.P.S.
Muzzle Energy: 1,633 ft.-lbs.
03/08/2010
X-Static MILITARY SOCKS
* Sizes: S-M-L
* Cost: $14.00 a dozen
* Total Qty: 12,000 dozen (3000 SMALL SIZE 9 – 11, 6000 MEDIUM SIZE 11 – 13,
AND 3000 LARGE SIZE 13 – 15.)
* Location: USA
* Notes: THESE SOCKS SELL TO THE US MILITARY FOR OVER $12.00 A PAIR !!! THEY
HAVE AT MINIMUM 2.5% SILVER IN THEM FOR PROPER FOOT CARE AND HEALING, AND
ANTI-FUNGAL PROBLEMS.
16/07/2010
Wireless manhole security
Product/Technology
Wireless Manhole Security
Features
Control center can controls secured Manholes by wireless network.
Manholes detects and send on-site information to control center.
(Fire, Electricity/Water/Gas leakage, Overflow, Intrusion)
Applications
Manholes in important area,
Such as Government, Military, Police, Industrial Buildings.
12/07/2010
US ARMY COT
Quality will sustain the proper weight (200Kgs).
Height 46cm (195 x80 x 46)
Middle leg tube thickness 1.4mm with the steel tube (21mm dia x 1.0mm Thickness
)incorporated into aluminium tube .
* Pre-fitted nylon cover with reinforced double-stitched edging Assembles
easily
* All mil-spec plastic feet, grommets, end caps and stainless steel hardware
* Folds up neat and tight in its own nylon storage / carry bag
* Basic set-up includes complete cot, frame, end sticks, spare cover and
storage bag
*
08/07/2010
Armored Vehicles
Stock of the Force Trax Model which are fully up-armoured with first class
armouring materials which are all certified by independent laboratories,
certificates can & will be provided. We are experiencing an issue with the model
year to sell them into Iraq; I was hoping you might be able to assist with the
sales of these vehicles in other parts of the world since you will have a large
contact list.The prices I am about to provide you are for your company, please
add your commission if your offering to others
We are really looking for a bulk deal… deduct $1,000 per vehicle for take all
Force Armoured to level B6
1. Force Judo Four Cylinder Turbo Diesel 12 units available Model Year 2006
$22,000 per unit
2. Force Pickup Four Cylinder Turbo Diesel 1 unit available Model Year 2006 $
17,000
3. Force Cruiser Four Cylinder Turbo Diesel 4 units available Model Year 2006 $
30,000 per unit
4. Force Cruiser Five Cylinder Turbo Diesel 23 units available Model Year 2007$
38,000 per unit
5. Force Pickup Five Cylinder Turbo Diesel 14 units available Model Year 2007 $
32,000 per unit
Force Soft SkinForce Pickup Five Cylinder Turbo Diesel 6 units available Model
Year 2007 $ 11,000 per unit
Armoured B6 Trax Cruiser Specs.pdf
Size : 0.153 Kb
Type : pdf
Armoured B6 Trax Pickup 4Cy.pdf
Size : 0.149 Kb
Type : pdf
Armoured B6 Trax.pdf
Size : 0.154 Kb
Type : pdf
06/07/2010
Ground-to-air missile
Legal for any Chinese country with diplomatic relations.
Defense items are subject to final destination approval and granting of an
Export license issued by exporting country's authorities
more pictures on request!
05/07/2010
SECURITY VEST + WARNING TRIANGLE IN PLASTIC BOX
Quantity / 6.430 pcs / 4 Paletts
Origin / Made in / ITALY
Location of Stock ITALY Delivery
Minimum Order 6.430 pcs / 4 Paletts
Unit Price: EUR 2,99 take all/
Retail Value9,99 EURO
ITALY Brand SECURITY VESTS
1st Class Stocklot with full paperwork
Quantity 71.254 pcs
Origin / Made in / EUROPE
Location of Stock ITALY
Unit Price: EUR 0 .95 take all
SECURITY VEST + WARNING TRIANGLE IN PLASTIC BOX
SECURITY VEST + WARNING TRIANGLE IN PLASTIC BOX
Quantity / 6.430 pcs / 4 Paletts
Origin / Made in / ITALY
Location of Stock ITALY Delivery
Minimum Order 6.430 pcs / 4 Paletts
Unit Price: EUR 2,99 take all/
Retail Value 9,99 EURO
03/07/2010
CCD color camera
200pcs CCD color camera stock .
For day and night time
With wire 20meter high quality big size
Pollybag and carton packing
The price is only 23 usd/PC ex-ware to clear the stock
01/07/2010
CAMOUFLAGE T-SHIRTS
Item : Camouflage T shirt
Description : round neck, short sleeve
Qty : 12,000 pcs
03/06/2010
We are pleased to offer, subject unsold or market withdrawal:
1 x AS332 Super Puma Helicopter.
Price on serious enquiry and destination
AS332 SUPER PUMA
TECHNICAL SPECIFICATION
AS332 C / 2109 CONFIGURATION
STATUS
This Specification is applicable only to the particular Super Puma Helicopter
AS-332 C for PT. D I VIP CONFIGURATION
INTRODUCTION
This document covers the technical definition of the aircraft with respect to
the AS 332 C 1982 sales standard, identifies the optional systems selected and
presents those customized systems.
All these systems are delivered as kits. Installation and tests on aircraft are
performed in INDONESIA.
The aircraft are DGCA Indonesia certificate, and accepted with an EXPORT
Airworthiness Certificate.
GPWS and ELT to be install to comply DGCA Requirement.
Color Scheme to be define from customer, with color base White RAL 9016 Gloss,1.
GENERAL DESCRIPTION
The twin engine AS-332 C Super Puma is designed by Eurocopter France.
The AS-332 C Super Puma is fitted with 2 Turbomeca Makila 1A turbines each
developing 1,755 shp ( 1,310 kW ).
The main features of the helicopter are :
- The main rotor consist of a rotor head and 4 blades rotating lock-wise (
viewed from above ) at a rated speed of 265 rpm
- Tail rotor hub
- The five – blade Tail rotor
- Turbomeca MAKILA 1A Turbine engines 1,755 ( 1,310 kW )
- Capacity : 19 seats ( including pilot, copilot and flight crew )
- Fast cruise speed 141 kts ( 262 km/hr )
- Substantial useful load
- Extensive power reserve
- Safety
- Low operating cost
- Easy of maintenance
1.1 Standard Lay-Out
► Minimum crew ( D.G.A.C. Category A and B certification )
• VFR : 1 Pilot ( + licensed crewman for category A )
• IFR : 2 Pilots
1.2 Weight breakdown
Kg Lb.
Standard aircraft empty weight (including & engine oil and unusable fuel): 4,365
9,623
Maximum gross-weight at take-off: 8,600 18,959
Corresponding useful load: 4,235 9,336
Crew of 2: 160 353
Payload and fuel: 4,075 8,983
Maximum gross weight with external load: 9,350 20,615
Maximum sling capacity: 4,500 9,920
1.3 Standard
Dimensions
1.3.1 Overall Dimensions
Length, rotor rotating: 18.70 m 61.35 ft
Main rotor diameter: 15.60 m 51.18 ft
Height at top of tail rotor: 4.92 m 16.14 ft
Tail rotor diameter: 3.05 m 10.00 ft
Length with blades folded: 15.53 m 50.95 ft
Width with blades folded: 3.79 m 12.43 ft
Height, at rotor head: 4.60 m 15.09 ft
Ground clearance under cabin: 0.47 m 1.54 ft
Ground clearance under tail rotor: 1.88 m 6.16 ft
Fuselage width: 3.38 m 11.08 ft
1.3.2 Cabin Dimensions
Length at floor level: 4.68 m 15.35 ft
Maximum length: 6.05 m 19.85 ft
Maximum width: 1.80 m 5.90 ft
Maximum height: 1.55 m 5.08 ft
Area Available: 7.80 m2 84.00 sq. Ft
Volume available: 11.40 m3 402.60 cu ft
1.3.3 Access To The Cabin
Lateral sliding doors
- width: 1.30 m 4.26 ft
- height: 1.35 m 4.43 ft
- area: 1.75 m2 18.83 sq.ft
Rear panel
- maximum width: 0.98 m 3.21 ft
- minimum width: 0.70 m 2.29 ft
- length: 1.90 m 6.23 ft
1.4 Rotor Data
1.4.1 Main Rotor Data
Number of blades: 4 4
Diameter: 15.60 m 51.18 ft
Chord: 0.60 m 1.97 ft
Length: 7.00 m 22.96 ft
Rotor speed: 265 rpm 265 rpm
Disc Area: 154,40 m2 1661.95 ft2
1.4.2 Tail Rotor Data
Number of blades: 5 5
Diameter: 3.05 m 10.00 ft
Chord: 0.20 m 0.66 ft
Length: 1.22 m 4.00 ft
RPM (100%): 1,279 rpm 1,279 rpm
1.5 Center of Gravity Limit
1.5.1 Longitudinal C.G
The CG datum is located forward of the main rotor centerline 4.67 m (183.86 in)
1.5.2 Lateral C.G Position
- LH limit: 0.08 m (3.15 in)
- RH limit: 0.09 m (3.55 in)
The CG datum is the aircraft symmetry plane
1.6 Design Features
1.6.1 Main Rotor Design Features
The main rotor consists of a rotor head and 4 blades rotating clockwise (viewed
from above) at a rated speed of 265 r.p.m. The main rotor head hinges are
lubricated either with NATO 0.156 (MIL-L 23699) or NATO 0.155 (MIL-L 6086)
synthetic oil. Alternative oil NATO 0.148 (MIL-L 7808).1.6.2 Main Rotor Blade
Design Features
The Rotor blades, with evolving profile, mainly consist of a fiber glass roving
spar, carbon and glass fabric laminated skins, with moltoprene and honeycomb
fillers. Length: 7.00 m (22.96 ft)
Chord: 0.60 m (1.97 ft)
Airfoil section: cambered with tapering thickness ratio
Twist :from 0 to -8.74 over 5.65 m (18.53 ft)
Paint: dark green on upper and lower surface
1.6.3 Tail Rotor Blades Design Features
Length: 1.22 m (4.00 ft )
Chord: 0.20 m (0.66 ft)
Airfoil section: curved and tapered
Paint: dark green
1.6.4 Engine Ratings2 TURBOMECA MAKILA 1A TURBINE - ENGINES
Power per engine, in standard atmosphere, at sea level
3 PERFORMANCE
3.1 Main Performance
The characteristics and description of the helicopter are presented in this
section. The three-view drawing is also shown in Figure 1.
Maximum take-off weight,
- Internal load carrying configuration : 8,600 kg's (18,960 lb.)
Maximum weight in flight,
- External load carrying mission : 9350 kg's ( 20,615 lb.)
Its characteristics and performance make it the first medium-weight aircraft of
the new generation for 80’s
- Capacity : 19 seats (including pilot, copilot and flight crew)
- Fast cruise speed : 141 kts ( 262 km/hr )
- Substantial useful load
- Extensive power reserve
- Lower vulnerability
- High survivability
- Low operating costs
- Easy of maintenance
The performances shown below are mean values obtained with new engines. Unless
otherwise specified, they are for the aircraft in “clean “ configuration, in
zero wind, sea level, and standard atmosphere conditions.
3.2 Performance On 2 Engines
Take off weight: 8,600 kg 18,960 lb
Maximum speed, Vne: 150 kts 278 km/hrs
Economical cruise speed: 136 kts 252 km/hrs
Fast cruise speed: 141 kts * 262 km/hrs *
Fuel consumption at economical cruise speed 502 kg/hrs 1.107 lb /n.m
Fuel consumption at 70 kts: 389 kg/km 858 lb./hr
Rate of climb at 70 kts: 8.2 m/sec 1,618 ft/min
Max range w/o fuel reserve, economical cruise speed standard fuel tank.**: 609
km 329 n.m
Max endurance(w/o reserve at 130 km/hrs (70 kts)), with standard fuel tank: 3.16
hrs 3.16 hrs
Hover Ceiling IGE at take-off power ISA: 3,250 m 10,663 ft
ISA + 20° C: 2,300 m 7,546 ft
Hover Ceiling OGE at take-off power ISA: 2,300 m 7,546 ft
ISA + 20°C: 1,400 m 4,593 ft
Service Ceiling ISA: >2,895 m > 9,500 ft
ISA + 20°C: > 2,895 m > 9,500 ft
* Pitch limited to 16°
** Depending on the selected optional fuel tanks
3.3 Performance In External Load Carrying Mission
Rate of climb at 9,350 kg: 6.5 m/sec 1,279 ft/min
Hover ceiling OGE at take-off power ISA: 670 m 2,200 ft
ISA + 10º C: 200 m 650 ft
3.4 Performance On 1 Engines
Take off weight: 8,600 kg 18,960 lb
Rate of climb at intermediate emergency power S.L 3.4 m/sec 669 ft/min
Service Ceiling at intermediate emergency power ( Vz = 0 ) ISA: 1,800 m 5,906 ft
Service Ceiling at intermediate emergency power ( Vz = 0 ) ISA + 20° C: 950 m
3,117 ft
Maximum temperature for take-off in Cat. A from clear heliport at S. L: 40°C
40°C
3.5 Operating Limitations
Cleared to operate within the following altitude and temperature limitations:
Maximum pressure altitude:
Flight: 6.100 m 20.000 ft
Take - off and Landing: 4.570 m 15.000 ft
Maximum temperature : ISA + 35° C Limited to ( 50° C S.L )
Minimum temperature :
- 30°C ( Basic ) - 45°C ( With optional fuel anti-icing installation )
4. OPTIONAL EQUIPMENT
EQUIPMENT
► Tinted cockpit windshield + glare shield
► Emergency floatation gear
► External additional fuel tanks
► Second landing light
► Fuel Jettison system
► Enlarged windows
► Special LH door with built-in steps
► RH plug doors
► 4,5 ton sling ( RP = 22 kg – 48.5 lb )
► Fixed boom hydraulic hoist ( RP = 52 kg – 114.6 lb
► Air-conditioning system ( Freon Type-Pod Mounted )
► 16 “Comfort” seats + 1 seat for 3rd man crew
5. RADIO COMMUNICATION – NAVIGATION SYSTEM
EQUIPMENT
► ICS TEAM ( TB31 ) complete with three main control boxes
► VHF / AM COLLINS ( 20 B ) 1 and 2
► HF / SSB COLLINS ( HF 220 )
► Distress beacon JOLLIET ( JE2 )
► Headsets ELNO ( SP247 ) ( 0.6 kg each )
► VOR / ILS COLLINS ( VIR31 H ) 1 and 2
► ADF COLLINS ( ADF60 ) 1 and 2
► DME COLLINS ( DME 40 )
► Transponder COLLINS ( TDR 90 )
► Radio ALT. TRT ( AHV8 )
► Encoding ALT. BADIN CROUZET ( 39600 )
► Second GYRO COMPASS SFIM ( CG130 )
► Color radar BENDIX ( RDR 1400 C )
► Flight Recorder SFIM ( A 213 )
► Global Positioning System ( GPS ) – GARMIN 155XL
► Cockpit Voice Recorder CVR AR-120 Honeywell
Defense items are subject to final destination approval and granting of an
Export license issued by exporting country's authorities
11/06/2010
4 ferrets for your consideration
Mk2 Restored $39,000.00
Mk1 Restored $26,000.00
Mk2 (Mk1 with Mk2 turrent) $31,000.00
Mk1 not restored. $19.500.00
MORE PICTURES ON REQUEST.
15/06/2010
We are pleased to offer, from new manufacture:
105mm Light Howitzer M56
105mm howitzer m56
